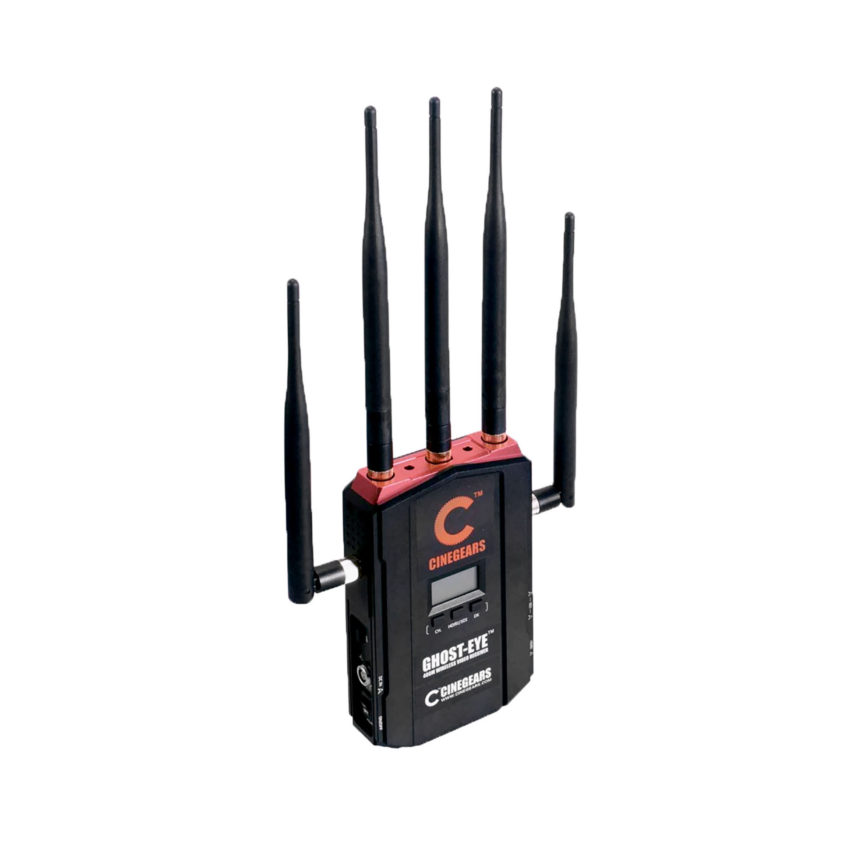

Ghost-Eye Wireless HDMI & SDI Video Receiver 400M V2
[tabs] [tab title=”Description” icon=”icon-icon1″ id=”tab-1″]
With the Cinegears Ghost-Eye Wireless HDMI & SDI Receiver 400M, receive high fidelity, uncompressed HD video transmission 400-1000 meters/ 1312-3280 ft, and feel free as you shoot indoors or out, night or day.
With both 3G and HDMI inputs and outputs, using frequencies between 5.1-5.9GHz as needed (up to 4 simultaneously), you will utilize the current cutting edge of video transmission, adding a professional quality to your project.
Ghost-Eye Wireless Video Transmitter 400M required for full feature utilization.
Main Features of Cinegears 400m Transmitters and Receivers
– Uses License-Free 5GHz ISM frequency band, maximum 4 channels automatic or manual selection, Coexist with WIFI.
– Supports wireless 10 bit HD video with no compression and no delay 400-1000 meters/ 1312-3280 ft.
– Uncompromised picture quality with very low latency <1ms.
– Support point to point, and point to multi points network topology, Multiple receiver is supported with up to 4 receivers .
– Cross compatibility between Cinegears Ghost-eye 100M, 150M, and 300M transmitter and receivers.
– Highest resolution 10bits color depth 4:4:4, 1080p 60FPS HDMI and SD/HD/3G SDI input and output, HDMI – SDI cross conversion is supported.
– Support professional audio formats include Dolby True HD, DTS-master, etc.
– AES-128/256 encryption with air interface HD video data stream.
– HDMI 1.4 with EDID support.
– Time Code, Tally is supported for broadcast or live event streaming production.
– Build-in ultra silent intelligent fun prevent heat and moisture damage.
– Wide range power voltage input, adapt most kinds of camera battery, optional Standard V-mount, Anton Bauer, or ¼ bolt Mount battery plate can be installed.
– Any input and output ports with ±8 kV ESD protection level (HBM, contact discharge).
– Plug & Play- fully hardware design, no software is required, firmware upgradable via mini USB port.
– Professional standard 2-pin LEMO power plugs.
– Built-in LCD screen displays for device and signal status.
– Water and mist proof, shock proof production case with form insert ready for traveling.
– CE, FCC, RoHS certified product, safe to use worldwide.
400M Wireless HD Video Receiver
–OUTPUT: SDI/HDMI, dual output supported
– 2 External antenna with RPSMA socket
| Transmitter | Receiver | |
| Interface | SDI Input(BNC Female); HDMI Input(Type A female); SDI LOOP Out; LEMO(0B/2 core); POWER IN; RP5MA Antenna; Power Switch | SDI Output(BNC Female); HDMI Output(Type A female); SDI LOOP Out; LEMO(0B/2 core); POWER IN; RP5MA Antenna; Power Switch |
| Supply voltage range | 6.5-16.8V DC | 6.5-16.8V DC |
| Transmission Distance | 400-1000 meters/ 1312-3280 ft | 400-1000 meters/ 1312-3280 ft |
| Power Consumption | <6.5W | <6W |
| Size | (L x W x H):108 x 60 x 23mm | (L x W x H):126.5 x 75 x 31.5 mm |
| Mass Weight | 360g | 480g |
| Input Video Format | SDI:3G,HD SD-SDI(Auto/Manuel-Selected): 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60;HDMI Type A: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60,1080p23.98/24/25/29.9/30/50/59.94/60;SMPTE 259/274/292/296/372/424/425; | SDI:3G,HD SD-SDI(Auto/Manuel-Selected): 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60;HDMI Type A: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60,1080p23.98/24/25/29.9/30/50/59.94/60;SMPTE 259/274/292/296/372/424/425; |
| Output Video Format | SDI input loop out | SDI:3G,HD SD-SDI(Auto/Manuel-Selected): 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60;HDMI Type A: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60,1080p23.98/24/25/29.9/30/50/59.94/60;SMPTE 259/274/292/296/372/424/425; |
| Video Processing Color depth | 8bit;10 bit;(4:0:0);(4:2:2);(4:4:4) | 8bit;10 bit;(4:0:0);(4:2:2);(4:4:4) |
| Input Audio Format | SDI embedded 4 channel 24 bit/48Khz; PCM, DTS-HD, Dolby True HD | / |
| Output Audio | SDI Embedded Audio Loop Out | SDI embedded 4 channel 24 bit/48Khz;PCM, DTS-HD, Dolby True HD |
| Signal Indicator | POWER-Green; VIDEO-Yellow | POWER-Green; Wireless RSSI-Blue(4 LEDs); POWER/VIDEO-Yellow |
| Frequency Band | 5.1-5.9GHz,configurable with China, North American, Europe, etc | 5.1-5.9GHz,configurable with China, North American, Europe, etc |
| Modulation Mode | OFDM 16QAM | OFDM 16QAM |
| Transmission Power | < 21dBm | / |
| Receiver Sensitivity | / | -75dBm |
| Occupied Bandwidth | 40MHz | 40MHz |
| Temperature Range | -15-60oC(operating condition);-40-80oC(Storage) | -15-60oC(operating condition);-40-80oC(Storage) |
| Transmission Cross Capability | Ghost-Eye 100M;150M;300M;400M | Ghost-Eye 100M;150M;300M;400M |
| Time Code | Ever 10 Second | Ever 10 Second |
| Compliance | FCC; CE; RoHS | FCC; CE; RoHS |
[chr-youtube-gallery order=”DESC” orderby=”date” posts=”6″ category=”ghost_eye_wireless_video_transmission”]
[/tab][tab title=”Specifications” icon=”icon-icon1″ id=”tab-2″]
| Transmitter | Receiver | |
| Interface | SDI Input(BNC Female); HDMI Input(Type A female); SDI LOOP Out; LEMO(0B/2 core); POWER IN; RP5MA Antenna; Power Switch | SDI Output(BNC Female); HDMI Output(Type A female); SDI LOOP Out; LEMO(0B/2 core); POWER IN; RP5MA Antenna; Power Switch |
| Supply voltage range | 6.5-16.8V DC | 6.5-16.8V DC |
| Transmission Distance | 400-1000 meters/ 1312-3280 ft | 400-1000 meters/ 1312-3280 ft |
| Power Consumption | <6.5W | <6W |
| Size | (L x W x H):108 x 60 x 23mm | (L x W x H):126.5 x 75 x 31.5 mm |
| Mass Weight | 360g | 480g |
| Input Video Format | SDI:3G,HD SD-SDI(Auto/Manuel-Selected): 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60;HDMI Type A: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60,1080p23.98/24/25/29.9/30/50/59.94/60;SMPTE 259/274/292/296/372/424/425; | SDI:3G,HD SD-SDI(Auto/Manuel-Selected): 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60;HDMI Type A: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60,1080p23.98/24/25/29.9/30/50/59.94/60;SMPTE 259/274/292/296/372/424/425; |
| Output Video Format | SDI input loop out | SDI:3G,HD SD-SDI(Auto/Manuel-Selected): 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60;HDMI Type A: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60,1080p23.98/24/25/29.9/30/50/59.94/60;SMPTE 259/274/292/296/372/424/425; |
| Video Processing Color depth | 8bit;10 bit;(4:0:0);(4:2:2);(4:4:4) | 8bit;10 bit;(4:0:0);(4:2:2);(4:4:4) |
| Input Audio Format | SDI embedded 4 channel 24 bit/48Khz; PCM, DTS-HD, Dolby True HD | / |
| Output Audio | SDI Embedded Audio Loop Out | SDI embedded 4 channel 24 bit/48Khz;PCM, DTS-HD, Dolby True HD |
| Signal Indicator | POWER-Green; VIDEO-Yellow | POWER-Green; Wireless RSSI-Blue(4 LEDs); POWER/VIDEO-Yellow |
| Frequency Band | 5.1-5.9GHz,configurable with China, North American, Europe, etc | 5.1-5.9GHz,configurable with China, North American, Europe, etc |
| Modulation Mode | OFDM 16QAM | OFDM 16QAM |
| Transmission Power | < 21dBm | / |
| Receiver Sensitivity | / | -75dBm |
| Occupied Bandwidth | 40MHz | 40MHz |
| Temperature Range | -15-60oC(operating condition);-40-80oC(Storage) | -15-60oC(operating condition);-40-80oC(Storage) |
| Transmission Cross Capability | Ghost-Eye 100M;150M;300M;400M | Ghost-Eye 100M;150M;300M;400M |
| Time Code | Ever 10 Second | Ever 10 Second |
| Compliance | FCC; CE; RoHS | FCC; CE; RoHS |
1 x CINEGEARS Ghost-Eye Wireless HD & SDI Video Receiver 400M
5 x Extended High Range Antennas
1 x 2-pin to D-tap Lemo cable
